Hydraulic Torque Wrench TorcUP type SQ Series
The Hydraulic Torque Wrench SQ Series is a masterpiece of style, capability and durability. Now offering our perfected Uni-Swivel design, the SQ can adapt to any job site application. Within this tool, you will find our proven “Three Moving Part” technology which provides application accuracy of +/-3%. Engineered to master any application, the SQ matches its amazing looks with the safest and most reliable results.
The World’s Sexiest Looking Hydraulic Wrench!
- Made in the USA
- Four Models From 127 Ft/Lbs to 11,000 Ft/Lbs
- Every Unit Calibrated In ISO17025 Laboratory
- Manufactured With AQ Certified Alloys
- Genuine TorcUP Design
The SQ Series proves that TorcUP is again the producer of “The Worlds Sexiest Looking Hydraulic Wrench” – FACT. We don’t need to say this tool looks GREAT because our competitors do!! Equaling great looks the SQ Series benefits from an all VASCOMAX “Three Moving Part” component system. No other company creates ALL of their internal torque components out of VASCOMAX … Only TorcUP.
SQ 2018 Manual SQ Catalog

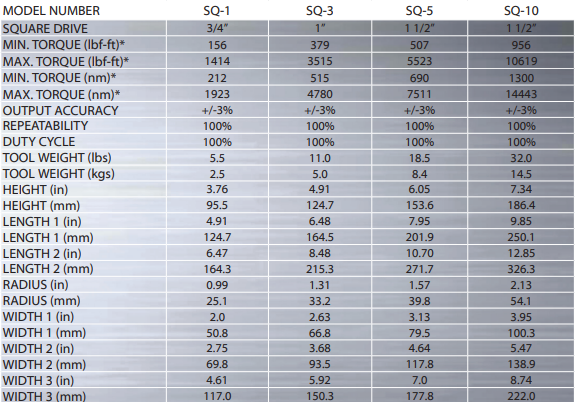

SPECIFICATIONS

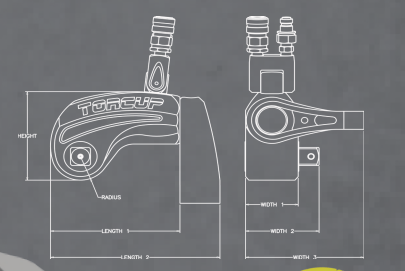

DIMENSIONS
FEATURES
Patented Mono-Body Housing
This feature is a TorcUP exclusive. The SQ Series housing is machined from a single block of 7075 AQ Aluminum, which reduces torsion and flex on the body of the tool under pressure.
This feature is a TorcUP exclusive. The SQ Series housing is machined from a single block of 7075 AQ Aluminum, which reduces torsion and flex on the body of the tool under pressure.
Uni-Swivel
The 360 degree by 180 degree uni-swivel allows for shorter tool length thereby accommodating applications with obstructions.
The 360 degree by 180 degree uni-swivel allows for shorter tool length thereby accommodating applications with obstructions.
Push-Through Drive
The push-through square drive allows the user to switch easily from loosen to tighten without having to remove the drive.
The push-through square drive allows the user to switch easily from loosen to tighten without having to remove the drive.
Steel Reaction Boot
This feature protects the main reaction point of the arm and is field replaceable.
This feature protects the main reaction point of the arm and is field replaceable.
Laser Engraved Torque Chart
The dual sided shroud is laser engraved with the torque chart for the SQ Series, preventing lost charts during use.
The dual sided shroud is laser engraved with the torque chart for the SQ Series, preventing lost charts during use.
Reaction Arm Release Button
The release button for the reaction arm is set within the arm as a safety feature, protecting the arm from accidental disengagement.
The release button for the reaction arm is set within the arm as a safety feature, protecting the arm from accidental disengagement.
Multi-Tooth Drive Segment
This design ensures a 27 degree stroke each time the tool fully advances.
This design ensures a 27 degree stroke each time the tool fully advances.
No Drip Quick Connect Couplers
These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation.
These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation.
ACCESSORIES
SQ Direct Hex Drive Adaptor
Replace the square drive of your SQ tool with this hex drive adaptor to drive socket head cap screws.
Replace the square drive of your SQ tool with this hex drive adaptor to drive socket head cap screws.
SQ End Cap Protector
This accessory provides protection for the end cap when operating the tool without the reaction arm.
This accessory provides protection for the end cap when operating the tool without the reaction arm.
SQ Extended Reaction Tube
Attach this reaction tube in place of the standard reaction arm when your reaction point is located further from the nut.
Attach this reaction tube in place of the standard reaction arm when your reaction point is located further from the nut.
SQ Solid Square Drive
This square drive provides a non-push-through variation for tightening and loosening.
This square drive provides a non-push-through variation for tightening and loosening.
SQ Solid Long Extension Arm
This solid reaction arm is 6" longer than the standard reaction arm of each tool, allowing for a further reaction point.
This solid reaction arm is 6" longer than the standard reaction arm of each tool, allowing for a further reaction point.
SQ Wide Reaction Arm
When your reaction point does not hit firmly at the center of the standard arm, this arm provides a wider reaction plane. This can be factory installed as an option. Only available for the SQ-1 and SQ-3.
When your reaction point does not hit firmly at the center of the standard arm, this arm provides a wider reaction plane. This can be factory installed as an option. Only available for the SQ-1 and SQ-3.
SQ Tool Handle
This ergonomically designed handle for TorcUP hydraulic tooling can be attached to the tool for safe operation and positioning of the tool, while keeping hands clear of any reaction points.
This ergonomically designed handle for TorcUP hydraulic tooling can be attached to the tool for safe operation and positioning of the tool, while keeping hands clear of any reaction points.
No Drip Quick Connect Couplers
These 3:1 rated safety couplers are designed for simple engagement.
These 3:1 rated safety couplers are designed for simple engagement.
