Hydraulic Torque Wrench TorcUP type TX Series
The Hydraulic Torque Wrench TX Series is the “go-to” wrench when standard industrial torque tools are limited by size in their ability to engage the fastener. The TX eliminates issues around the nut, behind the nut and above the nut. On applications with extended stud protrusion, the TX easily slips over to get the torque applied with an accuracy of +/-3%. Contact us for a Free Demo today!
A Tool With Multiple Personalities!
- Made In USA
- Seven Models From 45 Ft/Lbs to 47,380 Ft/Lbs
- Every Unit Calibrated In ISO17025 Laboratory
- Manufactured With AQ Certified Alloys
- Genuine TorcUP Design
When designing the TX series every application obstruction was taken into consideration. Every unnecessary and cumbersome component was eliminated which created a tool with multiple personalities! The TX prides itself on fitting where others can not and applying vast amounts of torque unheard of by most. All the while still being the most field serviceable tool capable of being utilized and maintained in some of the most demanding environments around the globe. Add to that a tight tolerance torque output that is repeatable over and over year after year. Contact us for a Free Demo today!
TX 2018 Manual TX Catalog Hex Link Part Numbers

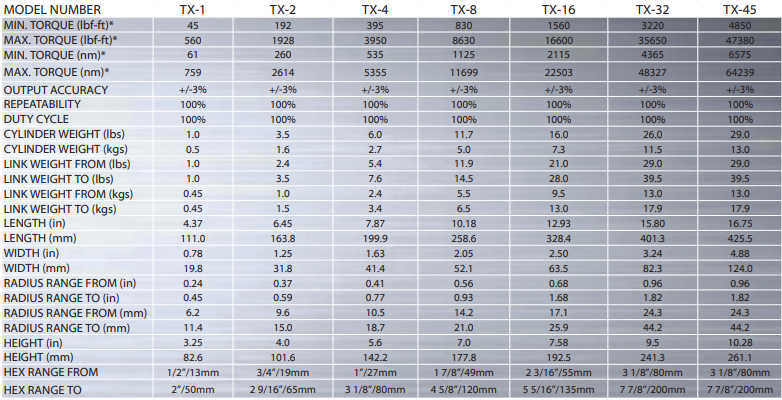

SPECIFICATIONS

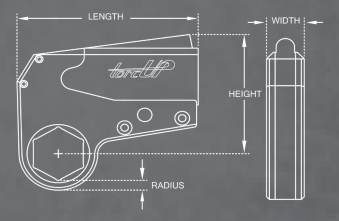

DIMENSIONS
FEATURES
Patented “Peanut-Shaped” Piston
This feature allows the cylinder and ratchet link to be the same width. Friction reducing sliders prevent wear on the piston.
This feature allows the cylinder and ratchet link to be the same width. Friction reducing sliders prevent wear on the piston.
Dual Independent Swivels
The unique swivel design allows for 360 degree by 360 degree independent movement of the hoses to avoid any and all reaction points.
The unique swivel design allows for 360 degree by 360 degree independent movement of the hoses to avoid any and all reaction points.
Hex Link Cassettes
Each link is fitted with steel alignment pins connecting the lower reaction area for added strength.
Each link is fitted with steel alignment pins connecting the lower reaction area for added strength.
No Drip Quick Connect Couplers
These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation.
These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation.
Cylinder and Link Material
Both cylinder and link are manufactured from 4340 Aircraft Quality high strength steel alloy.
Both cylinder and link are manufactured from 4340 Aircraft Quality high strength steel alloy.
Nose Radius
Tight nose radius allows this tool to fit in applications where clearance constraints make other tools too bulky.
Tight nose radius allows this tool to fit in applications where clearance constraints make other tools too bulky.
In-Line Reaction Pad
This design ensures torsion-free reaction every time.
This design ensures torsion-free reaction every time.
Link Pin
One pin for link to cylinder engagement - no tool required for swapping ratchet links.
One pin for link to cylinder engagement - no tool required for swapping ratchet links.
ACCESSORIES
TX Inline Reaction Arm
This arm can be attached to the drive cylinder and ratchet link to provide a reaction area further from the tool.
This arm can be attached to the drive cylinder and ratchet link to provide a reaction area further from the tool.
TX Tool Handle
This ergonomically designed handle for TorcUP hydraulic tooling can be attached to the tool for safe operation and positioning of the tool, while keeping hands clear of any reaction points.
This ergonomically designed handle for TorcUP hydraulic tooling can be attached to the tool for safe operation and positioning of the tool, while keeping hands clear of any reaction points.
TX Low Point Reaction Paddle
The paddle allows for a reaction point below the tool or against the edge of the flange.
The paddle allows for a reaction point below the tool or against the edge of the flange.
TX Link Pin With Landyard
The lanyard design for this accessory allows the link pin to be tethered to the tool, preventing lost or dropped pins when switching out ratchet links.
The lanyard design for this accessory allows the link pin to be tethered to the tool, preventing lost or dropped pins when switching out ratchet links.
TX Spanner Wrench
The line of spanner wrenches for the TX Series, available in closed end standard sizes and open or closed custom sizes, is a unique solution for applications where traditional links will not fit.
The line of spanner wrenches for the TX Series, available in closed end standard sizes and open or closed custom sizes, is a unique solution for applications where traditional links will not fit.
TX Hex Reducer
Custom hex reducers are available for all TX models to reduce the hex openings on the links. These bushings can reduce 3/16” (5mm) or more, depending on need.
Custom hex reducers are available for all TX models to reduce the hex openings on the links. These bushings can reduce 3/16” (5mm) or more, depending on need.
TX Hex to Square Drive Adaptor
Custom hex to square drive adaptors are available to insert a square drive (or hex drive) into a link for use with industrial impact sockets.
Custom hex to square drive adaptors are available to insert a square drive (or hex drive) into a link for use with industrial impact sockets.
Link Pin
One pin for link to cylinder engagement - no tool required for swapping ratchet links.
One pin for link to cylinder engagement - no tool required for swapping ratchet links.
