RP-E6 Series
The RP-E6 Series wrench is a torque instrument designed for use on the most accuracy critical applications in the world, Wheel Bolting! With the use of standard industrial sockets, every bolting application is met with repeatable torque to an accuracy of +/-5%. Contact us for a Free Demo today!
Lengthen the reach of the torque tool barrel
- Made In USA
- One Model Capable of 1,030 Ft/Lbs
- Every Unit Calibrated In ISO17025 Laboratory
- Manufactured With AQ Certified Alloys
- Genuine TorcUP Design
The RP-E6 is designed to lengthen the reach of the torque tool barrel into depth and width critical locations – the typical application being that of rims installed on large trucks and mining (OTR) equipment. However, if your bolting application requires up to 1,030 ft/lbs of torque and the fastener is nestled in a deep and tough to reach location, we meet the challenge also with the RP-E6. So whether you are bolting rims to your large mining machine or assembling a large pump with fasteners in deep pockets, your application can be handled by the RP-E6 with ease. Contact us for a Free Demo today!
RP-1000 E6 Manual 2017 RP Catalog

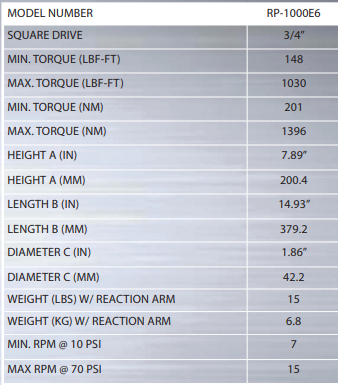

SPECIFICATIONS

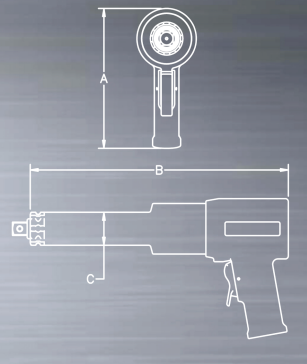

DIMENSIONS
FEATURES
Integral 6" Nose Extension
The nose of the tool has an integral 6" extension at the 3/4" square drive.
The nose of the tool has an integral 6" extension at the 3/4" square drive.
Ergonomic Pistol Grip
The pistol grip of the RP Series was designed to allow for firm and comfortable positioning. It is finished with a durable slip-resistant textured coating.
The pistol grip of the RP Series was designed to allow for firm and comfortable positioning. It is finished with a durable slip-resistant textured coating.
Compact Air Motor
The lightweight ultra-efficient air motor is designed for easy maintenance.
The lightweight ultra-efficient air motor is designed for easy maintenance.
Cast Reaction Arm
The sturdy "non-welded" construction provides a safe and strong reaction point.
The sturdy "non-welded" construction provides a safe and strong reaction point.
Internal Gear Drive
The RP Series employs a patented planetary gear design which increases torque multiplication without added
weight and bulk.
The RP Series employs a patented planetary gear design which increases torque multiplication without added
weight and bulk.
Dual Operation Trigger
The trigger allows for forward and reverse operation without grip repositioning
The trigger allows for forward and reverse operation without grip repositioning
ACCESSORIES
Filter/Regulator/Lubricator Unit
The RP-FRL Unit is used to filter and lubricate the air supply, as well as regulate the pressure to achieve desired torque output. The unit comes complete with a pressure gauge and 8’ connecting air hose, and is fitted with a one-piece welded steel frame for protection and transport.
The RP-FRL Unit is used to filter and lubricate the air supply, as well as regulate the pressure to achieve desired torque output. The unit comes complete with a pressure gauge and 8’ connecting air hose, and is fitted with a one-piece welded steel frame for protection and transport.
Long Extended Reaction Arm
Used with deepwell sockets
Used with deepwell sockets
Socket to Socket Reaction Arm
Allows the operator to react against the adjacent nut using a cup to protect it. It allows to adjust the socket to socket between 4” and 6” away from the square drive of the tool
Allows the operator to react against the adjacent nut using a cup to protect it. It allows to adjust the socket to socket between 4” and 6” away from the square drive of the tool
Straight Reaction Arm
This arm is designed to accommodate a reaction point at a 90 degree angle from the drive.
This arm is designed to accommodate a reaction point at a 90 degree angle from the drive.
Weld Blank
This reaction arm is made of raw steel and allows the customer to fabricate their own custom arm. The weld blank is splined to fit the RP Series and includes heat treating specifications.
This reaction arm is made of raw steel and allows the customer to fabricate their own custom arm. The weld blank is splined to fit the RP Series and includes heat treating specifications.
Dual Operation Trigger
The trigger allows for forward and reverse operation without grip repositioning.
The trigger allows for forward and reverse operation without grip repositioning.
