RP Series
The RP series handle makes it appear like an impact wrench, but once you pull the trigger nothing about this tool relates to the word “IMPACT”. This is a smooth running instrument for applying vast amounts of torque in a continuous fluid like manner. With the use of standard industrial sockets every application is met with repeatable torque to an accuracy of +/-5%. Contact us for a Free Demo today!
NOTHING ABOUT THIS TOOL RELATES TO THE WORD IMPACT!
- Made In USA
- Five Models From 78 Ft/lbs to 6,000 Ft/lbs
- Every Unit Calibrated In ISO17025 Laboratory
- Manufactured With AQ Certified Alloys
- Genuine TorcUP Design
When it comes to the saying “more to it than meets the eye”, this is an understatement when creating an accurate and durable pneumatic torque wrench. The RP series wrenches combine the most tight tolerance air drive motors along with a planetary gear stack capable of handling more torque than the tool is cited as capable of – YES WE BUILT IN A SAFETY FACTOR! The specifications we state are the specifications you get when you purchase an RP series wrench! From the speed to the torque to the weight to the operational sound level – WHAT IS ADVERTISED IS WHAT YOU GET! And what you get is a tool that you can count on! So what matters to you? Marketing hype or the ABSOLUTE MOST DURABLE PNEUMATIC TORQUE WRENCH SERIES EVER PRODUCED! Contact us for a Free Demo today!
RP Manual new RP Catalog New

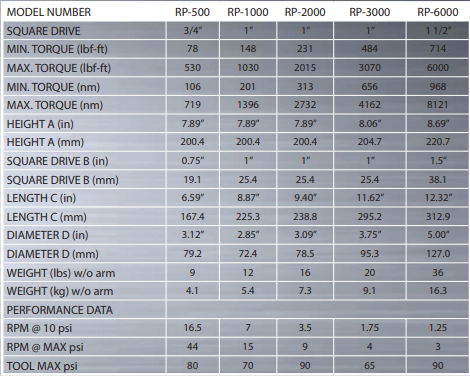

SPECIFICATIONS

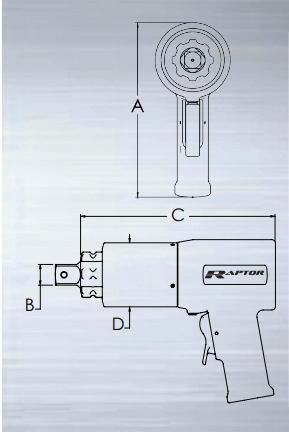

DIMENSIONS
FEATURES
Sturdy Square Drive
The design of the square drive allows for direct socket engagement.
The design of the square drive allows for direct socket engagement.
Ergonomic Pistol Grip
The pistol grip of the RP Series was designed to allow for firm and comfortable positioning. It is finished with a durable slip-resistant textured coating.
The pistol grip of the RP Series was designed to allow for firm and comfortable positioning. It is finished with a durable slip-resistant textured coating.
Compact Air Motor
The lightweight ultra-efficient air motor is designed for easy maintenance.
The lightweight ultra-efficient air motor is designed for easy maintenance.
Cast Reaction Arm
The sturdy "non-welded" construction provides a safe and strong reaction point.
The sturdy "non-welded" construction provides a safe and strong reaction point.
Internal Gear Drive
The RP Series employs a patented planetary gear design which increases torque multiplication without added weight and bulk.
The RP Series employs a patented planetary gear design which increases torque multiplication without added weight and bulk.
Dual Operation Trigger
The trigger allows for forward and reverse operation without grip repositioning.
The trigger allows for forward and reverse operation without grip repositioning.
ACCESSORIES
Filter/Regulator/Lubricator Unit
The RP-FRL Unit is used to filter and lubricate the air supply, as well as regulate the pressure to achieve desired torque output. The unit comes complete with a pressure gauge and 8’ connecting air hose, and is fitted with a one-piece welded steel frame for protection and transport.
The RP-FRL Unit is used to filter and lubricate the air supply, as well as regulate the pressure to achieve desired torque output. The unit comes complete with a pressure gauge and 8’ connecting air hose, and is fitted with a one-piece welded steel frame for protection and transport.
Long Extended Reaction Arm
This arm provides a longer reach, working with deepwell sockets.
This arm provides a longer reach, working with deepwell sockets.
Sliding Straight Arm
This arm is designed for socket to socket reaction. The drive/cup design protects the adjacent nut from direct reaction and is adjustable from 4" to 12".
This arm is designed for socket to socket reaction. The drive/cup design protects the adjacent nut from direct reaction and is adjustable from 4" to 12".
Straight Reaction Arm
This arm is designed to accommodate a reaction point at a 90 degree angle from the drive.
This arm is designed to accommodate a reaction point at a 90 degree angle from the drive.
Weld Blank
This reaction arm is made of raw steel and allows the customer to fabricate their own custom arm. The weld blank is splined to fit the RP Series and includes heat treating specifications.
This reaction arm is made of raw steel and allows the customer to fabricate their own custom arm. The weld blank is splined to fit the RP Series and includes heat treating specifications.
Nose Extension
The extensions fasten directly to the nose of the tool, allowing for reach into hard to access applications. This works with the standard reaction arm.
The extensions fasten directly to the nose of the tool, allowing for reach into hard to access applications. This works with the standard reaction arm.
Pinch Avoidance Safety System
This safety system allows for dual handed operation of the RP Series. The operator keeps one hand on the trigger and the other on the PASS system - upon release of the PASS trigger, the tool immediately stalls.
This safety system allows for dual handed operation of the RP Series. The operator keeps one hand on the trigger and the other on the PASS system - upon release of the PASS trigger, the tool immediately stalls.
Tool Carrying Handle
This ergonomic handle is durable and allows for left or right hand operation, as well as vertical and horizontal positioning. It can be factory or field installed and works on all RP models.
This ergonomic handle is durable and allows for left or right hand operation, as well as vertical and horizontal positioning. It can be factory or field installed and works on all RP models.
